Name: 14 Slot Rackmount Chassis Fiber Optic Converter With 4 Fans 2 Power Supply
Brand: Fiberroad
Price: 1 USD

Place of Origin : China

Brand Name : Fiberroad

MOQ : 10pcs

Packaging Details : Standard neutral or brand packing

Delivery Time : 2-3 workdays

Payment Terms : 100% T/T advance

Supply Ability : 5000pcs/Month

Model Number : FR- R14A

Certification : CE

Product name : Fiber Optic Media Converter

Mode : Single mode , Multi mode

AC Voltage : AC 85~265V

Structure : 2U rack

Port : 14 / 16 Port

Wavelength : 850nm/1310nm/1550nm

Price : Pls send request details

Contact Now

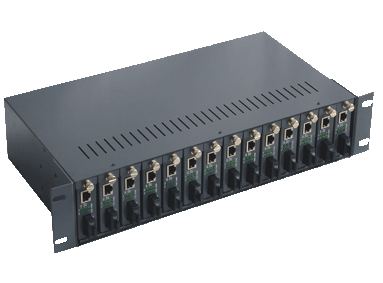

14 Slot Rackmount Chassis Fiber Optic Converter With 4 Fans 2 Power Supply

Advantage:

14-Slot Rackmount Chassis with 4 Fans for cooling device to work more stable.

14-sLOT Rackmount Chassis with 2 Power Supply, AC + AC , DC+ DC, or AC+ DC for optional

14-Slot Rackmount Chasis with 4 Package Inner Box to packle into 1 Carton Box to keep safety

transport .

The configuration of active/standby power supply ensures uninterruptible operation of the system.
Provide two power supplies (AC 220V, and DC -48V), enabling the system can work under many operating environments;
Supporting simultaneous operation of several module type (module type) media converters at different rates, which greatly improves system adaptability;
Each card supports hot swapping;

Technical Indexes Description:

Parameter	Specifications
Number of slots	16	14
Structure	2U rack	2U rack
Power input	AC Voltage: AC 85~265V; frequency: 50/60 Hz	AC Voltage: AC 85~265V; frequency: 50/60 Hz
	DC voltage: DC-36~72V	DC voltage: DC-36~72V
Power output	DC5V 16A	DC5V 16A
Ripple	<20mv	<20mv
Power configuration	Single power supply; or Dual power supply for warm backup mode	Single power supply; or Dual power supply for warm backup mode
LED indication	POWER (power supply)	POWER (power supply)
Max. power consumption	80W	80W
Operating temperature	-10~55ìC	10~55ìC
Operating humidity	5%~90%	5%~90%
Maintaining temperature	-40~70ìC	-40~70ìC
Maintaining humidity	5% ~ 90% non-condensing	5% ~ 90% non-condensing
Dimensions of rack	90mm (H) * 485mm (W) * 245mm (D)	88mm (H) * 442mm (W) * 350mm (D)

Order information:

Model No	Description
FR-R 14A	14-slot dual-power supplies rack (220v)
FR-R14D	14-slot dual-power supplies rack (-48v)
FR-R 16A	16-slot dual-power supplies rack (220v)
FR-R16D	16-slot dual-power supplies rack (-48V)

14 Slot Rackmount Chassis Fiber Optic Converter With 4 Fans 2 Power Supply

16 Slot Media Converter Rack

14 Slot Rackmount Chassis Fiber Optic Converter With 4 Fans 2 Power Supply

14 Slot Media Converter Rack
